User Manual


Appendix

COLORS


VirtualDJ offers color selection that can be used to highlight tracks in the browser via the Tag Editor and also can be used to mark Points of Interest such as Hot Cues, Saved Loops and Remix Points in the POI Editor and Pads Editor. The color palette can be selected in Options under colorPicker.

There are 4 options to choose from: Auto, Gradient, Simple or System. By default the Color Picker is set to Auto. This will use Gradient colors for the Tag Editor and Simple colors for everything else (Hot Cues, Saved Loops, etc). This behavior can be changed by selecting one of the other Color Picker options to make color selection universal.

Gradient



The Gradient Color Picker offers 8 base colors to choose from (7 colors + 1 transparency). Clicking on one of the offered base colors will open up different shades for that selection. Clicking on one of the variant shades will assign that color to your selection.

Color Name
HTML hex value
RGB value
Red
#FF0000
255,0,0
Yellow
#FFFF00
255,255,0
Green
#00FF00
0,255,0
Cyan
#00FFFF
0,255,255
Blue
#0000FF
0,0,255
Magenta
#FF00FF
255,0,255
White
#FFFFFF
255,255,255



Simple



The Simple Color Picker offers 16 colors to choose from (15 colors + 1 transparency)

Color Name
HTML hex value
RGB value
Dark Grey
#646464
100,100,100
Light Grey
#D8D8D8
216,216,216
White
#FFFFFF
255,255,255
Dark Red
#800000
128,0,0
Pink
#E69696
230,150,150
Red
#FF0000
255,0,0
Orange
#FF7F00
255,127,0
Yellow
#FFFF00
255,255,0
Beige
#FFFFC8
255,255,200
Green
#00FF00
0,255,0
Cyan
#00FFFF
0,255,255
Marine
#4A86E6
74,134,230
Blue
#0000FF
0,0,255
Violet
#9600FF
150,0,255
Magenta
#FF00FF
255,0,255



System



The option to select System colors is also available and will use your Operating System's color palette for all color selections.

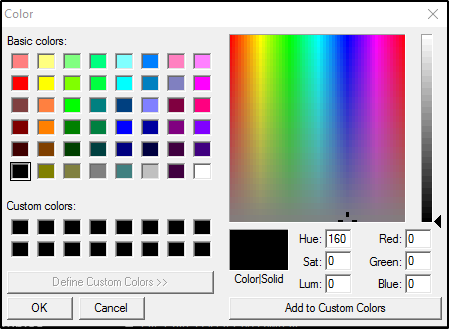

Windows System Color Picker

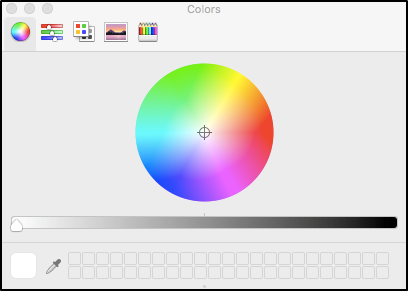

Mac System Color Picker



Custom values for colors that are not in the default color selector can also be used in the Pads Editor. Entering a Hex or RGB value via VDJScript into the Color Tab of the Pads Editor will display custom colors. Example: color '61,77,38' or color ‘#3D4D26’ will display a dark shade of Olive Green. Common color names can also be used such as color ‘green’. Export
