Native Instruments - Kontrol S8 - Layout

SAMPLER

29. GROUP VOL. Adjust the volumes of the first 4 Sampler Groups (if available).
    These faders are touch-capacitive and will display the Sampler Group Volumes view on the display, as long as any of those is touched.


    S8 Display - Sampler Group Volumes view


30. SAMPLER FX. Use the 1st button from left to apply the selected Effect to Sampler.
    Use the the middle buttons to select the previous/next available Effect for Sampler
    The 4th button is not used.

    When in Browser mode, use these buttons to sort the Songs list by Artist, Title, BPM or Key.


31. SAMPLER FX KNOB : Use these encoders to adjust the first 4 Parameters of the selected Effect for Sampler (if available).

    These encoders are touch-capacitive and will display the Sampler Effects view on the display, as long as any of those is touched.

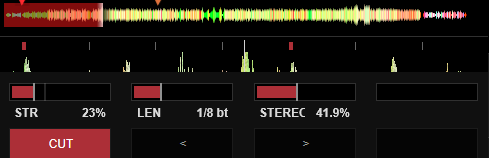

    S8 Display - Sampler Effects view



Browser
