Forum: VirtualDJ Skins

Topic: Vertical SongPos Element
Hi all,

I'm trying to build a 4-Decks vertical skin for the Denon Prime 4.

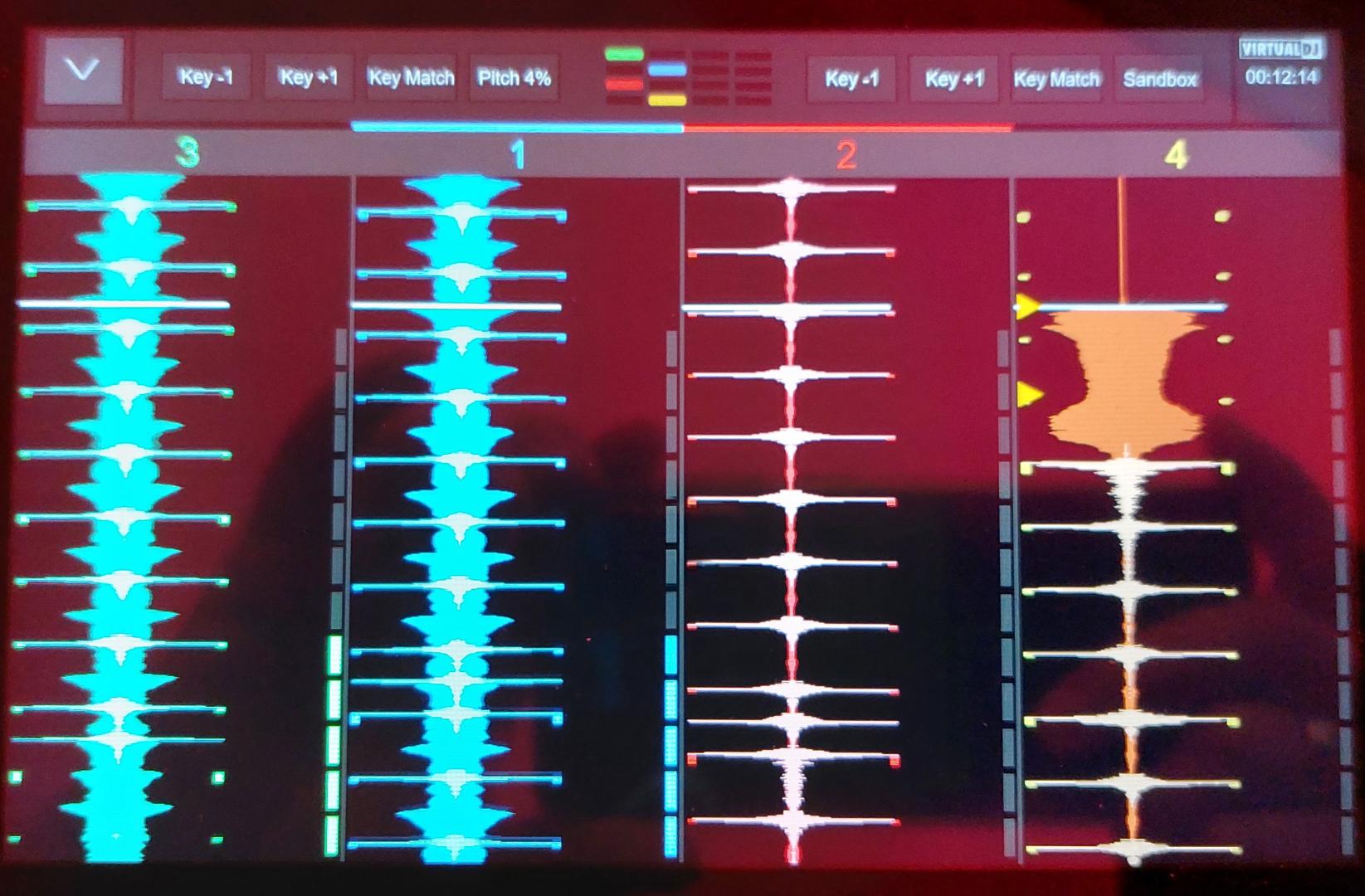

Here is a work-in-progress screenshot:



I wanted to integrate the songpos next to each scratch wave. Then I found, that this is not working. I found some old topics on the forum , stating that this is not working in v7 so far.
Will this be supported sometimes? Maybe I'm not doing it correctly. Can anybody post a snippet on a vertical songpos element?

Thx and cheers
Jochen


Posted Fri 10 Feb 23 @ 11:25 pm
locoDogPRO InfinityModeratorMember since 2013


Posted Fri 10 Feb 23 @ 11:56 pm
Hey LocoDog,

nice to read you. Hope you're fine. I checked that "special" already. Using orientation="vertical" does not render anything. Maybe I did something wrong. Do you have a working snippet?


Posted Sat 11 Feb 23 @ 12:02 am
locoDogPRO InfinityModeratorMember since 2013
seems broken then, this should work

<songpos colorPlayed = "colorplay" orientation = "vertical" colorHigh = "colorHigh" colorMed = "colorMed" colorBass = "colorBass" colorVocal = "#075CDB" colorInstru = "#0AC200" colorBeat = "#FFFFFF" colorNoBeat = "#000000" >
<pos x = "950" y = "500" />
<size width = "34" height = "255" />
<wave>
<size height = "250"/>
<pos y = "+5" />
</wave>
<cues dy = "0" shade = "0" >
<size width = "13" height = "13" />
<clipmask x = "1522" y = "43" /> </cues>
<loops dy = "0" shade = "0" >
<size width = "13" height = "13" />
<clipmask x = "1545" y = "43" />
</loops>
</songpos>


Posted Sat 11 Feb 23 @ 12:19 am
Thx for the snippet and sorry for the late reply.

I checked it out and found that it does not work. Removing the orientation attribute renders the element.

So
<songpos  orientation = "vertical" .../>
seams to be broken. 😥

Maybe DJDad can confirm the issue?
Shoud I report this issue in the technical forum, as-well?

Thx for the help so far.

Cheers Jochen


Posted Sat 11 Feb 23 @ 9:33 am

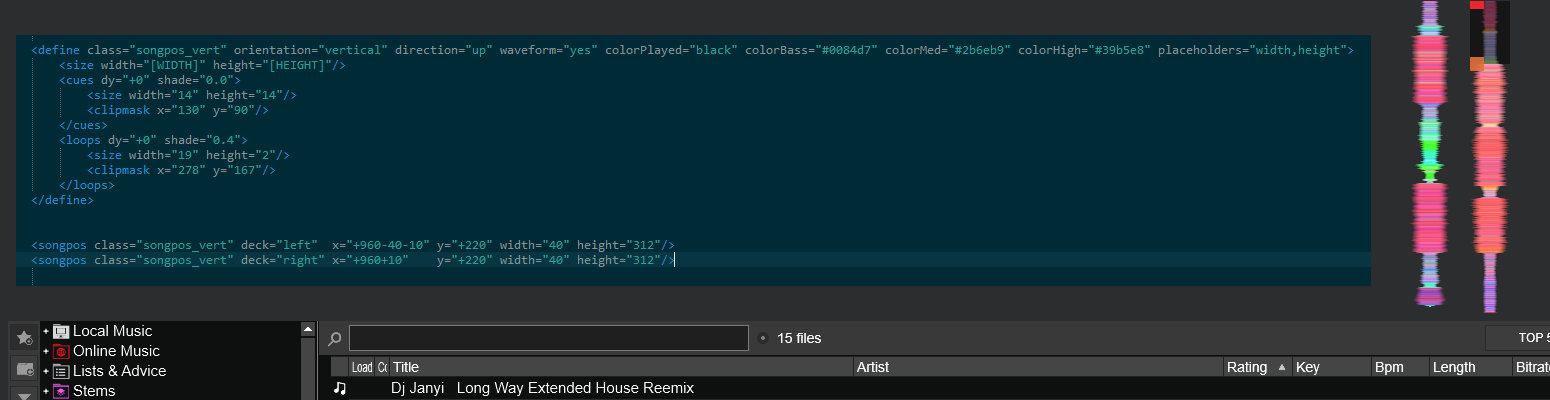

According to my tests, the vertical songpos seems to work only when you set a define first...



Posted Sat 11 Feb 23 @ 5:12 pm
Hey ALEXRDZAIK,

you're right and thank you so much for the workaround.

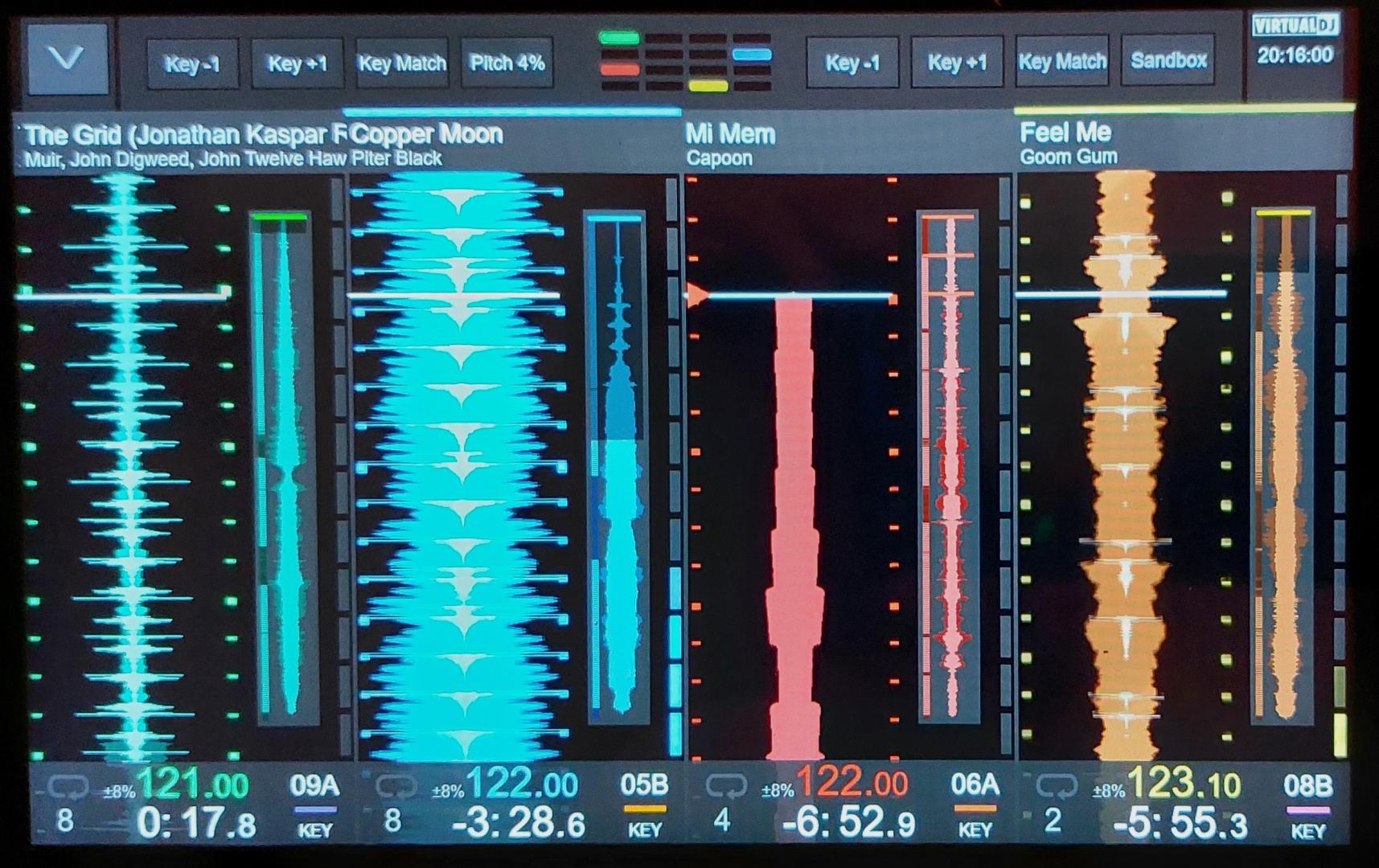

Like this I was able to proceed with my vertical skin for Denon Prime 4:


Thx and cheers
Jochen


Posted Sat 11 Feb 23 @ 7:25 pm
Excellent, your skin looks great. 😯


Posted Sat 11 Feb 23 @ 7:42 pm
Thanks man,
will continue to improve it and make variations for Prime 4, Prime Go, and SC Live 4. Maybe I'll provide it for download afterwards.


Posted Sun 12 Feb 23 @ 8:32 am
Hi Jochen. Would be Great to have it inplemented in my skin. You can do so, if you want. If you need any help, let me know. I have same skin to prime 2 and Prime go too.
Regards Tomas.


Posted Mon 13 Feb 23 @ 9:11 am
