DopeBoyz wrote :
I love the way the library looks


If you mean grid view, you can switch to that in the default browser.



Posted Wed 23 Dec 20 @ 3:44 pm
djdadPRO InfinityDevelopment ManagerMember since 2005

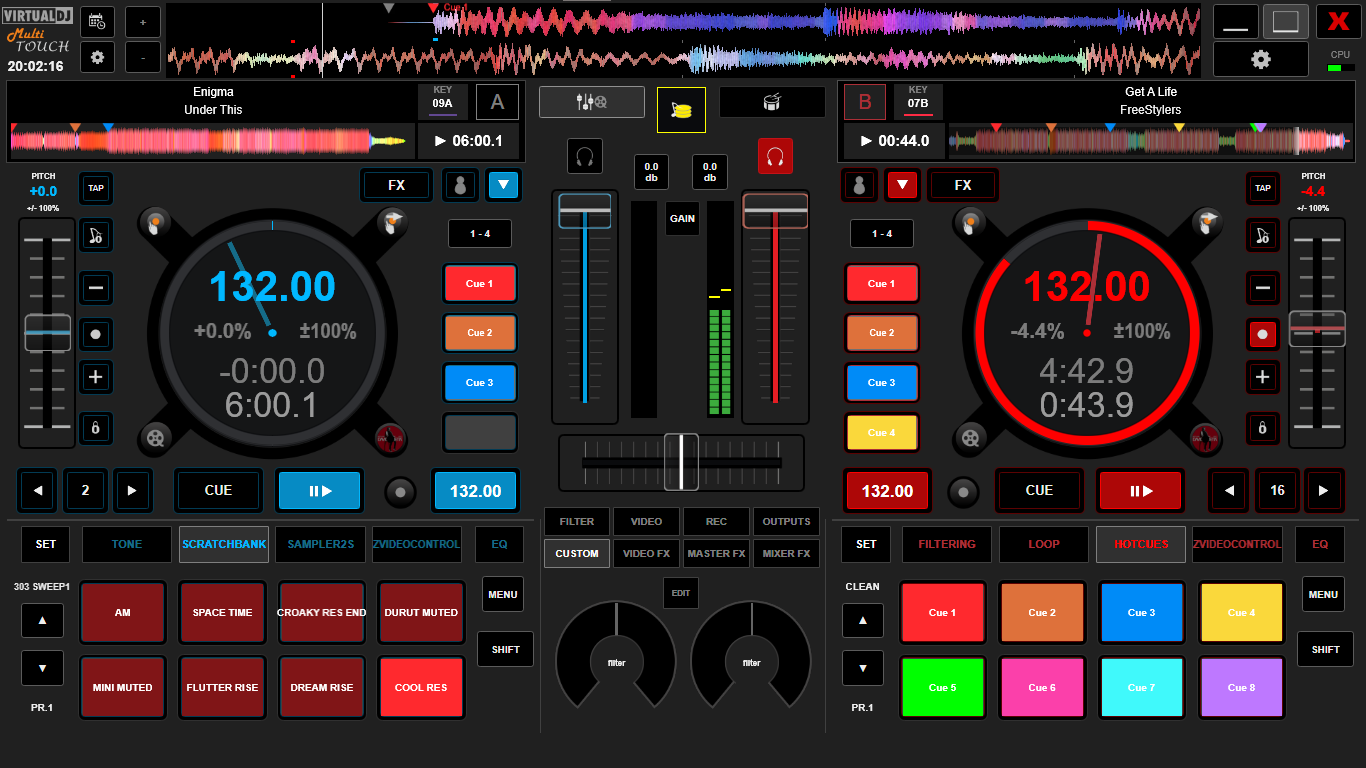

New long-waited update : Version 4.0
Changelog:

  • Vector graphics for most elements
  • 2 & 4 Decks variations (from Skin Options). Deck letters always act as Select, LEFT/RIGHT buttons to Swap in 4 Decks.
  • Waveform Types and Options (from Skin Options)
  • Added 4Ch Mixer view in 4 Decks (from Skin Options)
  • Added Daylight color theme (from Skin Options)
  • 8 per-deck Pad modes (4 main + 4 secondary w 2nd click) can be assigned to any Pads page (SET button)
  • Added MODE button in EQ view to select the EQ/Stems mode
  • Added Round knobs view in Deck FX
  • Added Stems FX buttons in Deck FX
  • Added 3rd panel with 8 Hotcues in Vertical Wave/Custom buttons panel group
  • Added Custom buttons 5-9
  • Added dedicated Auto Loop buttons
  • Added Sampler Effects controls in Sampler view
  • Added Mixer Effects panel
  • Added Master Effects Panel
  • Added Custom/Pads extra panel Option in Browser view
  • Added Battery indicator
  • Sideview now offers Alternative Remixes and Shortcut (Clones) views

Have fun !


Posted Thu 25 Mar 21 @ 2:02 pm
hi DjDad...
i'm so happy to use this skin. and i really like yr ultimate update..
you do a really good job. and of course i'll buy a 24 touch monitor to use with it.. and i will let you know some bug or suggestion..
but now i want to ask one thing:
is possible to personalized the jogweel logo "virtualdj touch", with my own logo.
if yes how can i do it?
if no.. can you provide it with next update?
maybe on a 3rd click option on the switch "show cover on jog"
it will be nice if : "show my own logo on jog"
;-)
rally thanks for this super usefull skin :-)


Posted Sat 15 May 21 @ 1:35 am
NicotuxHome userMember since 2014
In this skin the round logo is part of the background image skin.png
can only be altered by editing the image directly
third click is also possible (I used 3rd and 4th clicks for "Pioneer like" Jog light some post before)

This is a transparent part with concentric circles and the logo size 320x320 located at
(683,728) in the picture used in MULTI TouchScreen V4

As there is a lot of free space in the image, better add your logo respecting the shape and size somewere in the image andmoidify the location of logo in the skin.xml

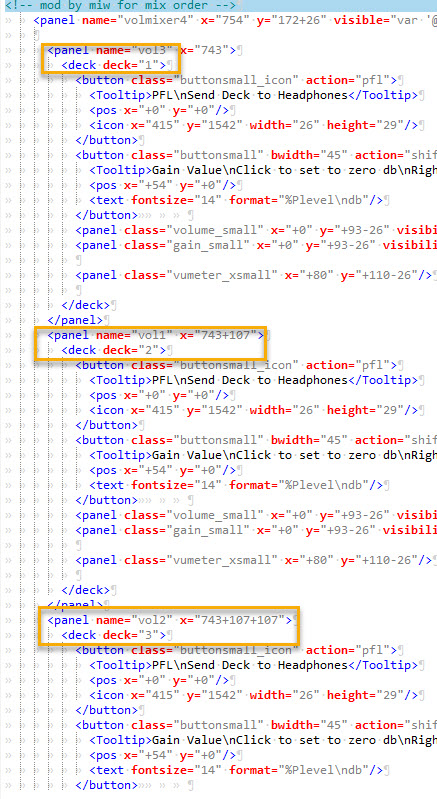

MULTI TouchScreen V4:
line 1579 <on x="683" y="328+400"/>
or duplicate block adding visibility=var '@$coverjog' 1 for the original
visibility=var '@$coverjog' 2 for the original
and replace
toggle '@$coverjog' with cycle '@$coverjog' 3
in line 1538 and 1593
and visible="var 'videoview' 0 ? var '@$coverjog' 1" with visible="var 'videoview' 0 ? not var '@$coverjog' 0" in line 1563

In MULTI TouchScreen V3 location was (683,2328) in the picture
lines to modify :
lines 1727, 2579, 3474, 4324
or with my mods:
lines 1764, 2575, 3428, 4239


I didn't realize there was some refresh issues in borders due to no/transparent background using V3
not fixed in V4 (VDJ refresh & resize issues combined)

- The V4 looks like having some issues with switching 2 <-> 4 decks modes (deck selection does not work)
- The jog center cog not visualy aligned when resized no logo/no cover mode (VDJ resize issue)
- depending on some variables values, can load without showing any jog/plater when comming from
other skins (same as default skin) sanity check at oninit
- big empty area and wrong bottom elements resizing

(fixed everything while applying most of my V3 patches to V4 too)
https://imgur.com/1NoEVUV


Posted Tue 18 May 21 @ 7:48 pm
