Forum: General Discussion

Topic: American Audio Midi Controller.. Nice - Page: 1

This part of topic is old and might contain outdated or incorrect information

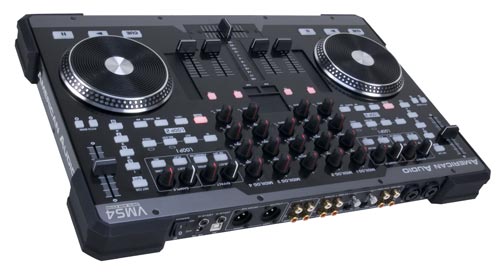

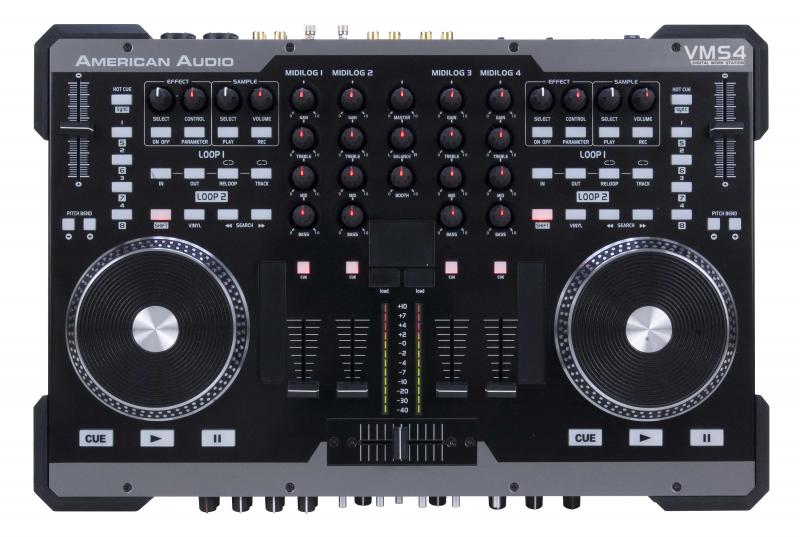

Here is a Nice Midi controller made by American Audio. Im not a fan of american audio but this looks nice..





American Audio
VMS4 - VELOCITY MIDI STATION


General Features:
• Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
• Traktor ready**
• All audio control faders, knobs, switches, and buttons smoothed – eliminates popping, wiper noise, and zipper noise
• On/off soft startup and turnoff
• Gain/treble/mid/bass EQ on all MIDILOG™ channels
• 2 phono/line selectable analog channels
• Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
• On/off cueing on each MIDILOG™ channel
• Split cueing headphones with rotary mix control
• Illuminated rubber knobs for ease of use in dark environments
• Solid 1.6mm thick faceplate for extra durability
• Panel mounted rotary knobs
• Full analog mixer operation if the computer crashes or with external power supply
• Innofader replaceable crossfader compatible (sold separately)
• Crossfader curve control
• Crossfader assign and reverse
• Q-Start crossfader controlled startup for 2 external audio players
• User replaceable channel faders
• Master and Booth outputs with L/R balance
• Balanced Master outputs
• 12 position stereo master output VU meter

Midi Features:
• Built-in mouse pad
• Long life MIDI assignable touch strips
• Two 10- bit resolution pitch sliders
• 62 assignable MIDI buttons and switches
• 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
• 4 assignable rotary encoders
• 34 assignable rotary controllers
• 5 assignable linear fader controllers
• Dual MIDI controls on all buttons and switches
• Dual 2000 point resolution touch sensitive turntable scratch controllers
Audio Features:
• 24-bit 48 kHz analog audio
• 16-bit 44.1kHz USB audio
• 10-bit resolution on all analog fader controls
• THD <0.1%*
• Channel separation >60dB*
• S/N ratio >85dB*
• Analog channel audio latency < 1msec
• Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog
channels or 2 in 8 out mode for running 4 software channels and master recording
• 2 msec response on all buttons
• 4 msec response on all rotary and linear faders
• 1 msec USB latency

Posted Wed 20 Jan 10 @ 6:29 pm
I like it.

I've only had one issue with the American Audio mixer I've bought - a solder joint broke off the circuit board.

Havn't seen this one before - looks interesting.

It looks solid!
Hope they have build it solid too.
I'm looking forward with this controller and hopefully with VDJ on board.

looks nice!! i may have to try this out? is it out yet?

Djmadman73 wrote :
looks nice!! i may have to try this out? is it out yet?


They just announced it at NAMM. It should be out in April of 2010.

it does look pretty cool..

I love the two mics inputs and booth output!

hippydog wrote :
it does look pretty cool..

I love the two mics inputs and booth output!


First thing i noticed too!!!

It's not rackmount though is it?

Saw it on youtube looks cool. Mouse like the xponent and needle drop like the ns7. Nice. Would be even better if it worked like the RMX as far as an audio interface.

durdeesmurdee wrote :
Saw it on youtube looks cool. Mouse like the xponent and needle drop like the ns7. Nice. Would be even better if it worked like the RMX as far as an audio interface.


Please explain??? thought it did everything like for like and more

One feature no one is mentioning yet ........


Full analogue mixer operation if computer crashes..

First one to do that - seems like a no-brainer but no-one else does it.

DJ Marcel_1 wrote :
One feature no one is mentioning yet ........


Full analogue mixer operation if computer crashes..

First one to do that - seems like a no-brainer but no-one else does it.


Yeah and that will make this mor attractive!! i am liking this more and more!! any word on price!! i am guessing some where near $800 US!!
but you never know mabe more!!

This controller is $ 699 US You can use this as a mixer without hooking it up to your computer. It has a strong premium fader with curve control, Touch sensitive scratch wheels and a Special version of tracktor. It has a Mouse pad andTouch strips for needle dropping. You can also change the Fader.

OK.... now here is the deal breaker? will it be compatiable with VDJ? FULLY compatiable!!

The representative for American Audio said.... It can be used with any popular dj tittle. Its fully midi mappable. The controller will be available very soon.

In as much as this a new entry in the dj market, it's only a question of time until this controller will be fully supported with VDJ.
At any rate, NI did their homework already, too quick and impressive.

Djmadman73 wrote :
OK.... now here is the deal breaker? will it be compatiable with VDJ? FULLY compatiable!!



Yes. Before it hits the street.

Support staff wrote :
Djmadman73 wrote :
OK.... now here is the deal breaker? will it be compatiable with VDJ? FULLY compatiable!!



Yes. Before it hits the street.



Then OH YES IT WILL BE MINE....IT WILL BE MINE!!! Mwhahaha



BTW everyone who watched the vid did you all hear that version of tractor will allow you to simulate 4 decks!! or poss 2 CD / TT and 2 virtual decks!!! Think of the posibilities!!! I hope VDJ will do the same for this controller!!!

It has everything that everyone else should have had years ago. Analog mixing way better and less cpu intensive. I like it.

-David

I've alway banged on about been under speced, yes you can get round it by taking loads of rack gear with you were ever you go but i was always pissed off with the manufactures holding back on us when it would of been possible to do all this years ago. Well they milked us with all there crap didn't they!

Pioneer are the biggest joke for me, when the DJM800 came out I just couldn't get my head around the fact that it didn't have a sound card! still can't!!!
