Rane - Seventy-Two - Layout

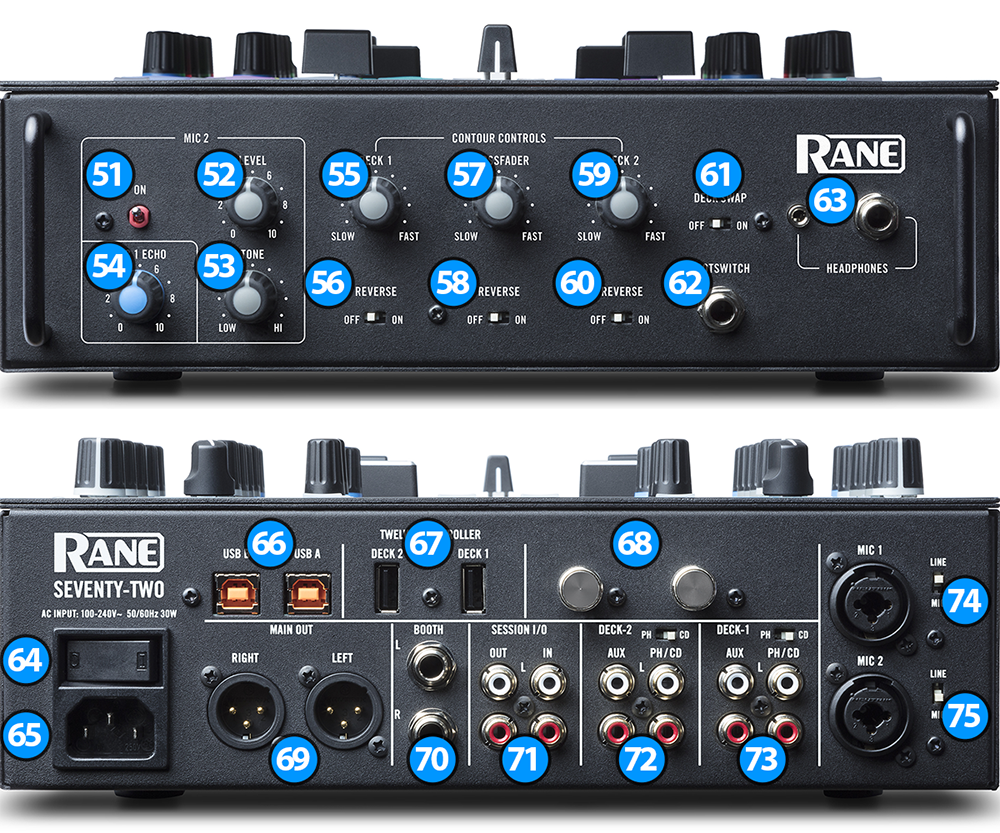

Front & Rear





KEY

ACTION

51 MIC 2 ON/OFF
Enables/Disables the microphone 2 input.
52 MIC 2 VOLUME
Adjust the volume of the microphone 2 input.
53 MIC 2TONE
Adjust the tone (single band equalizer) of the microphone 2 input.
54 MIC ECHO STRENGTH
Adjusts the strength of the echo effect used on microphone inputs.
55 DECK 1 FADER CONTOUR
Adjusts the contour of deck 1 volume fader.
56 DECK 1 FADER REVERSE
Reverses the direction of deck 1 volume fader.
57 CROSSFADER CONTOUR
Adjusts the contour of the crossfader.
58 CROSSFADER REVERSE
Reverses the direction of the crossfader.
59 DECK 2 FADER CONTOUR
Adjusts the contour of deck 2 volume fader.
60 DECK 2 FADER REVERSE
Reverses the direction of deck 1 volume fader.
61 DECK SWAP
Switces all the controls of the mixer so that deck 1 is on the right side and deck 2 on the left.
62 FOOTSWITCH
Connect a footswitch control.
By default there's no action assigned to footswitch control. However, footswitch is accessible through devices tab in VirtualDJ configuration and allows you to map it to perform any action you wish.
63 HEADPHONES
Connect your headphones.
64 POWER SWITCH
Turns ON/OFF the power of the device.
Please make sure that you have made all the necessary connections on the back of the unit before turning it's power ON.
65 POWER CONNECTOR
Connect a standard IEC power cable.
66 USB (Type B) PORTS
Connect a standard USB cable to connect Rane Seventy-Two with your computer.
You can connect up to two computers by using the two ports of the device (labeled USB A and USB B).
Make sure that you turn the channel CH INPUT SWITCHES (13) to the correct USB port for software mixing.
67 USB (Type A) PORTS
Connect your controller (like Rane Twelve) to use the integrated USB HUB of the device.
68 GROUND
Connect your turntables ground cable (if they offer one).
69 MASTER OUTPUT
Connect your amplifier of self-amplified speakers.
70 BOOTH OUTPUT
Connect your booth/zone amplifier or self-amplified speakers.
Please note that the output is balanced (TRS).
71 SESSION IN/OUT
Auxiliary Input (Session In) and Output (Session Out) useful to chain Rane Seventy-Two with another mixer, to connect an external recorder, or to add any device that provides a line level output on your mix.
72 DECK 2 INPUTS
Connect your analog gear (like CD Players and Turntables). The sound these devices will be routed on channel 2 of the mixer.
Attention: When you connect a device on the PH/CD RCA plugs make sure that you also switch the PH/CD switch on the appropriate position depending on the device you have connected. Failing to do so may result in heavy distortion or a very weak signal of the analog source.
73 DECK 1 INPUTS
Connect your analog gear (like CD Players and Turntables). The sound these devices will be routed on channel 1 of the mixer.
Attention: When you connect a device on the PH/CD RCA plugs make sure that you also switch the PH/CD switch on the appropriate position depending on the device you have connected. Failing to do so may result in heavy distortion or a very weak signal of the analog source.
74 MIC 1 INPUT
Connect a microphone, or an instrument. When an instrument is connected make sure to turn the LINE/MIC switch to "Line" position.
75 MIC 2 INPUT
Connect a microphone, or an instrument. When an instrument is connected make sure to turn the LINE/MIC switch to "Line" position.
