Advanced Audio Setup


Timecode (DVS)


VirtualDJ is offering DVS (Digital Vinyl System) support for the Rane Seventy Two. A Timecode Plus or Pro Infinity license is required. 2 Timecode Inputs are available to control any software decks via Timecode CDs or Vinyls.

All Mixer Channels can accept LINE (Timecode CDs) or PHONO Sources (Timecode Vinyls) depending on the CD/PH switchers at the rear panel of the unit.

  • Connect your Timecode devices at the rear panel of the Rane Seventy Two

  • Open VirtualDJ configuration window and select the AUDIO tab on the left

  • Click on the "TIMECODE SIGNAL" button to enable the timecode inputs

  • Your sound setup should be like the one shown on the following image:

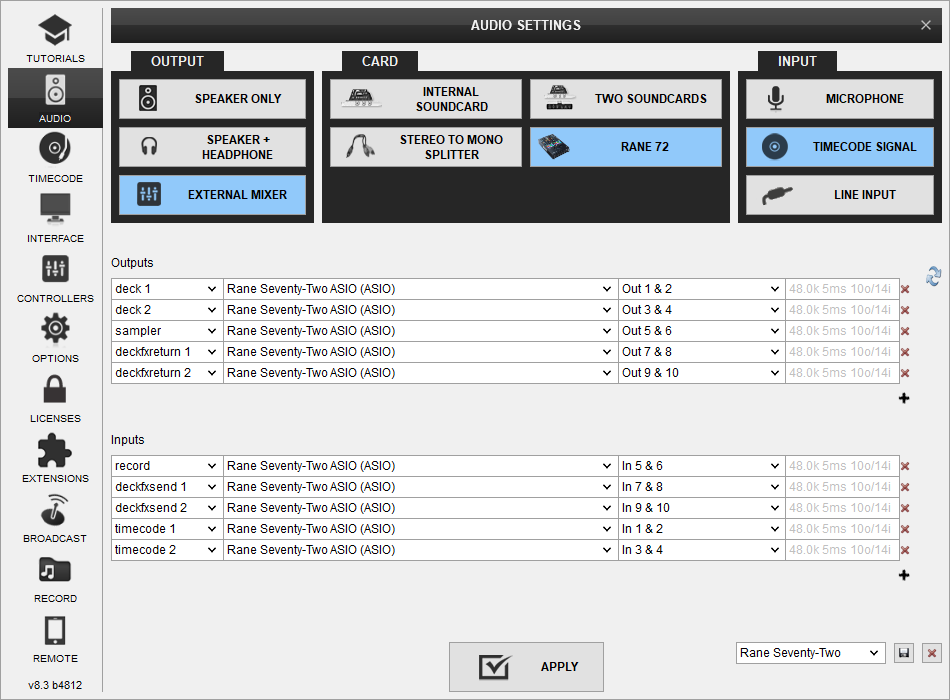

    Rane Seventy Two Sound Configuration with Timecode Inputs Configured


  • Click on "Apply" button

  • Click on the TIMECODE icon on the left side of configuration window.

  • Press PLAY on your timecode CD or Vinyl device and VirtualDJ will automatically detect your Timecode type and make the appropriate adjustments for best performance.

  • Click on the ON buttons from the TIMECODE panels of the Default Skin (in the SCRATCH center panel) to enable the Timecode control to any of the 4 software decks.

  • Press PLAY on your timecode CD or Vinyl device and VirtualDJ will automatically detect your Timecode type and make the appropriate adjustments for best performance.

  • Press the CALIBRATE button if for any reason the signal is not detected (possibly due to reversed phase connections).


Back to back


The Rane Seventy Two has two USB ports, allowing simultaneous connection of two computers. Each port is completely independent. It is possible to run VirtualDJ on one computer and any other DJ-software on the other, Mac or PC.

How to:

  • Connect the 2nd computer to the unused USB port on the Seventy Four.
  • Switch the Input Source of the non-playing mixer channel to the USB source of the 2nd computer.
  • Play a track on this deck and mix it when ready – you ll now have audio from both computers during the mix.
  • Fade out the audio playing from the 1st computer to the audio playing from the 2nd one.
  • When only audio from the 2nd computer is left in the mix, remove the first computer.
  • Assign the Input Source for the remaining free mixer channel to the 2nd computer and keep mixing.


Recording


The Rane Seventy Two has a dedicated Input to record your Main Mix. VirtualDJ has pre-configured this input for recording, thus no special setting is required in order to record your mix (including analogue sources and Microphone).
Use the REC or BSCAST buttons from the MASTER center panel of the VirtualDJ GUI to Record or Broadcast your mix.
