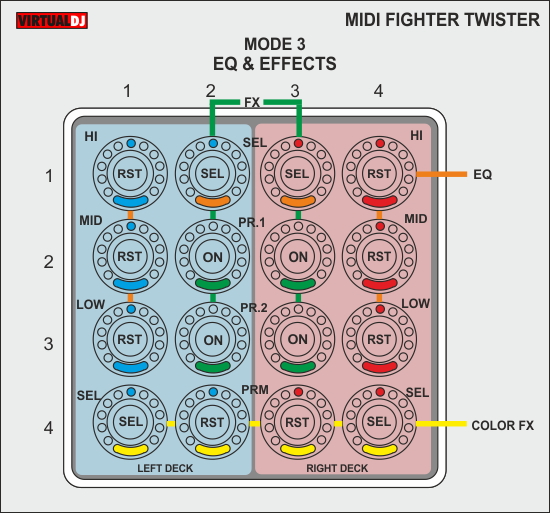

MODE 3 - EQ & EFFECTS

In this mode you can control the 3-Band Equalizer (or Stems depending on the EQ Mode), Effect Slot 1 and Color FX for Left/Right Decks.

KEY

3-Band EQ

ENC_1_1/1_4

Eq High

Reset EQ High

ENC_2_1/2_4

Eq Mid

Reset EQ Mid

ENC_3_1/3_4

Eq Low

Reset EQ High

FX Slot 1

ENC_1-2/1_3

FX Select when in select mode

FX select mode toggle

ENC_2_2/2_3

FX Param 1

FX On/Off

ENC_3_2/3_3

FX Param 2

FX On/Off

Color FX

ENC_4_1/4_4

Select Color FX when in Select mode

Color FX Select mode toggle

ENC_4_2/4_3

Adjust Color FX

Reset Color FX (mid position)

The Top and Bottom side buttons are not pre-mapped in this mode
