Numark - Mixtrack Platinum FX - Layout

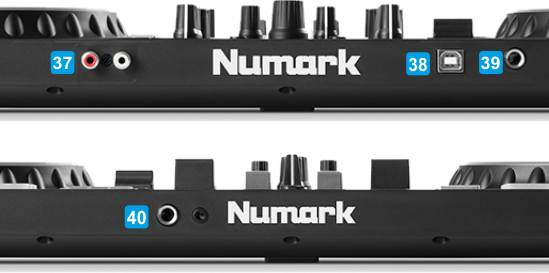

FRONT & REAR PANELS





KEY

DESCRIPTION

37 MASTER OUTPUT
Connect your amplified speakers using proper RCA cables. The Level of this Output is controlled from the top panel of the unit
38 USB
Connect the Mixtrack Platinum FX with a USB port of your computer, using the provided USB cable
39 MIC SOCKET
Connect a Microphone * using a 1/4" cable or adapter. The Level of this Input is controlled from the top panel of the unit[
40 HEADPHONES SOCKET
Connect your Headphones using a 1/4" or/and a 1/8" cable or adapter. The Volume of the Headphones channel is controlled from the top panel of the unit


*
Note : The Microphone Input is directly routed to the Master Output of the Mixtrack Platinum FX. The input is not available in the USB Audio Interface, therefore it cannot be included in the Audio Setup nor can be recorded directly. However, recording your mix along with the Microphone Input is possible via Record LoopBack
