American Audio - Radius 1000 - Layout

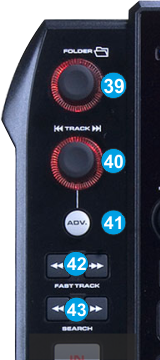

BROWSE & SEARCH


  1. FOLDERS. Use this encoder to scroll though the Folders list of the Browser. Push the encoder to open/close subfolders. If the focus is on the Folders list, the led of this encoder will be lit.

    In Advanced Browser mode use this encoder to cycle through the available views of Sideview (Automix, Sidelist, Karaoke, Sampler and Clones)
    Push the encoder to open close the Sideview

    In prelisten mode use this encoder to control the progress bar of the Prelisten player. If the Prelisten player is paused, using this encoder will start the player.
    Push the encoder to open close the Sideview

  2. TRACK. Use this encoder to scroll through the tracks of Songs List. Push the encoder to load the selected track to the deck. If the focus is on the Folders list, the led of this encoder will be lit.

    In Advanced Browser mode use this encoder to scroll through the tracks of the Sideview.
    Push the encoder to load the selected track to the deck.

    In Prelisten mode use this encoder to scroll through the tracks of the selected Browser window.
    Push the encoder to play/stop the selected track to the Prelisten player.
    Hold TAP(S) down and then push the encoder to set focus to the next Browser window

  3. ADV. Press this button to enter the Advanced Browser mode. In this mode (led will be lit), both FOLDER and TRACK encoders will control the Sideview List of the Browser and both their leds will be lit.
    Hold TAP(S) down and then press this button to enter the Prelisten mode. In this mode (led will blink), both FOLDER and TRACK encoders will offer prelisten controls and their leds will blink.

  4. FAST TRACK. Use these buttons to move the loaded track forward/backwards by 16 beats (fast seek).

  5. SEARCH. Use these buttons to move the loaded track forward/backwards by 2 beats (seek).
