Hardware Manuals


AKAI - AMX

SETUP


Firmware & Drivers


Drivers
Windows: Install the necessary drivers from http://www.akaipro.com/index.php/product/amx#downloads
Mac OSX: No drivers are required to be installed for Mac computers.

Firmware
No firmware is available at the time this manual is written.
.

VirtualDJ 8 Setup


Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)

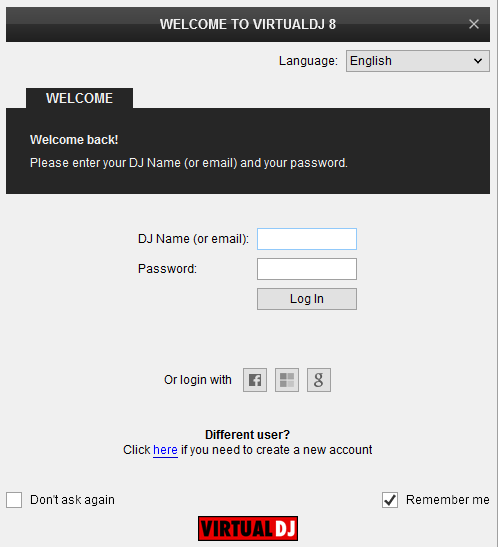

Once VirtualDJ 8 is launched, a Login Window will appear. Login with your virtualdj.com account credentials.

A Pro Infinity, a PLUS or a Pro Subscription License is required to use the AKAI AMX. Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
http://www.virtualdj.com/buy/index.html



A detection window will appear next asking to use or not the pre-defined audio setup with the built-in sound card of the AMX. You can still change that from Settings->AUDIO tab.



The unit is now ready to operate.


Advanced Setup



MIDI Operation
The unit should be visible in the CONTROLLERS tab of Config and the “factory default” available/selected from the Mappings drop-down list.
The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.


Find more details at
http://www.virtualdj.com/wiki/VDJ8script.html




AUDIO Setup
The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that. Alternative Audio setups can be applied in the same window.

Timecode (DVS)* configuration is also available (see DVS Support ).


*requires Pro Infinity or Timecode License http://www.virtualdj.com/buy/index.html







For further software settings please refer to the User Guide of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html

Controls
