Topic: Debugging c++ video effect - Page: 1
I'm writing a video effect and virtual dj keeps throwing an error saying it is not supported. I have tried injecting debugger wait code into the onLoad method but it doesn't even seem to be called. Is there another place earlier in the callstack I can inject as I'm not currently seeing any place I can hit a breakpoint to debug.


Posted Fri 01 Dec 23 @ 1:26 am
djcelPRO InfinityModeratorMember since 2004
Have you checked that you have/use the last GUID, ie last VirtualDJ SDK version?

CLSID_VdjPlugin8 = { 0xED8A8D87, 0xF4F9, 0x4DCD, { 0xBD, 0x24, 0x29, 0x14, 0x12, 0xE9, 0x3B, 0x60 } }
IID_IVdjPluginVideoFx8 = { 0xbf1876aa, 0x3cbd, 0x404a, { 0xbe, 0xab, 0x5f, 0x8b, 0x51, 0xe3, 0x90, 0xc0 } }


HRESULT VDJ_API DllGetClassObject(const GUID &rclsid,const GUID &riid,void** ppObject)
{
// you can check here

if (memcmp(&rclsid,&CLSID_VdjPlugin8,sizeof(GUID))==0 && memcmp(&riid,&IID_IVdjPluginVideoFx8,sizeof(GUID))==0)
{
*ppObject = new YourPluginClass();

}
else
{
return CLASS_E_CLASSNOTAVAILABLE;
}

return NO_ERROR;
}


Posted Sat 02 Dec 23 @ 8:11 am
Yes I run that check, and they are the most up to date versions. However I can't even get the debugger to hit that function as an entrypoint before VDj throws the error.


Posted Sat 02 Dec 23 @ 2:12 pm


Posted Sat 02 Dec 23 @ 2:20 pm
djcelPRO InfinityModeratorMember since 2004
Your entry point was renammed "DllGetClassObject1" in your sdk?


Posted Mon 04 Dec 23 @ 7:44 am
It was, and for the other plugins I’ve built it works fine. I believe it was due to some conflict with another windows library I was using. Nonetheless, if I use the other entry point function with the regular name it has the same result as well.


Posted Wed 06 Dec 23 @ 12:56 pm
Still haven't found a solution, any recommendations on where to go from here?


Posted Sun 10 Dec 23 @ 7:57 pm
djcelPRO InfinityModeratorMember since 2004
Sorry for the delay

I succeeded to compile it



1) I came back to default definition for DllGetClassObject
2) Move
#include "VDJ/vdjVideo8.h"
at top, just after pragma
3) it looks TouchEngine produces then the error


Posted Sun 17 Dec 23 @ 1:45 pm
Ok let me try that, I've been trying to go back to the default definition but get a compiler error.


Posted Sun 17 Dec 23 @ 10:58 pm
Ok so now it compiles with the standard definition, but I still cant get the debugger to hit any breakpoints at all. Do you mind sharing the visual studio config you are using for debugging?


Posted Sun 17 Dec 23 @ 11:05 pm
So I can see visual studio load the symbols when I import the plugin and I can see the breakpoints light up but even on the entrypoint function nothing is hit when the plugin loads. All I get is this window and no other errors.

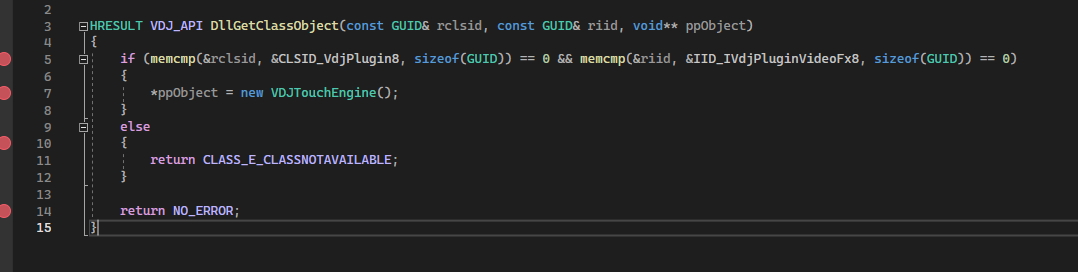

After debug launch

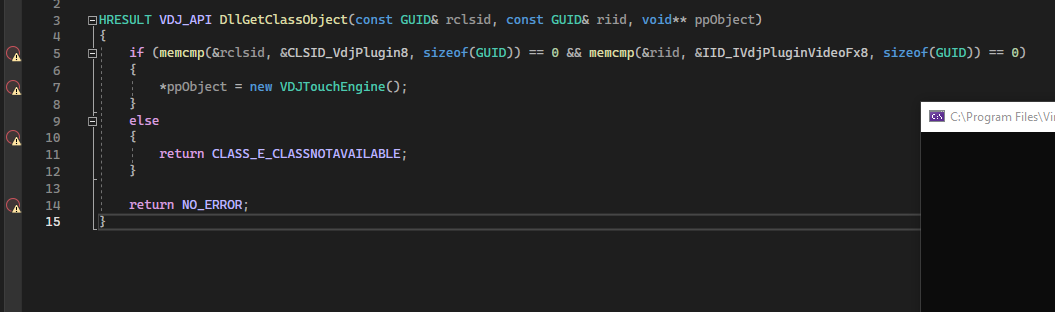

Attempting to import plugin

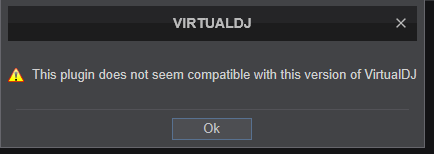

After attempt to load


Posted Mon 18 Dec 23 @ 12:52 am
djcelPRO InfinityModeratorMember since 2004
Start with basic code by setting comments to your aditional code and you will see it works. It's something with the lib loaded to my mind.


Posted Mon 18 Dec 23 @ 2:31 am
But shouldn't DLLGetClassObject be the first function called by VDJ? I don't even hit any of those breakpoints.


Posted Mon 18 Dec 23 @ 4:47 pm
The output from the visual studio console is below, it seems to only load symbols before VDJ immediately kills the plugin.

'virtualdj.exe' (Win32): Loaded 'C:\Users\djevo1\AppData\Local\VirtualDJ\Plugins64\VideoEffect\VDJTouchEngine.dll'. Symbols loaded.
'virtualdj.exe' (Win32): Unloaded 'C:\Users\djevo1\AppData\Local\VirtualDJ\Plugins64\VideoEffect\VDJTouchEngine.dll'


Posted Tue 19 Dec 23 @ 1:21 am
djcelPRO InfinityModeratorMember since 2004
user27599935 wrote :
But shouldn't DLLGetClassObject be the first function called by VDJ? I don't even hit any of those breakpoints.

Yes it is. As I said, your additional code make the plugin impossible to load.
Start again by only keeping vdj core sdk functions and you will see that it loads. Then add your code again step by step to find the issue.


Posted Tue 19 Dec 23 @ 5:22 pm
I'll give it a try but from a software standpoint that doesn't make much sense, at the very least it should call the entrypoint function then fail to load. The only thing I could think of that could cause the issue is something with externally linked symbols breaking the virtualdj api which in that case it seems impossible to diagnose.


Posted Tue 19 Dec 23 @ 5:33 pm
AdionPRO InfinityCTOMember since 2006
Since you seem to be linking to touchengine.lib, if that fails to load you would indeed not even reach dllgetclassobject
Perhaps this lib requires a dll to be present?


Posted Tue 19 Dec 23 @ 9:50 pm
So I found the source of the issue. Bearing in mind the debugger still does not attach, but if I comment out the lines of code below it is able to load. It is only these lines that cause the issue, I'm a bit confused as that segment of code shouldn't run at all but maybe VDJ does some form of runtime check on these functions??? I'm at a loss but at least now I am able to load the plugin.

HRESULT VDJ_API VDJTouchEngine::OnDeviceClose() {

if (instance != nullptr)
{
//TEInstanceSuspend(instance);
//TEInstanceUnload(instance);
//TERelease(&TEInput);
//TERelease(&TEOutput);
//TERelease(&TEOutputTexture);
//TERelease(&instance);
instance = nullptr;
D3DContext = nullptr;
D3DDevice = nullptr;
}

return S_OK;
}



Posted Tue 19 Dec 23 @ 11:30 pm
Adion wrote :
Since you seem to be linking to touchengine.lib, if that fails to load you would indeed not even reach dllgetclassobject
Perhaps this lib requires a dll to be present?


Yup, that's exactly what it is hahahahaha. I wish VDJ gave a clearer error when this was the case.


Posted Tue 19 Dec 23 @ 11:35 pm
So if I run with a debugger it works as expected, but if I run VDJ without the debugger connected it starts showing the error again. I can confirm everything works when VDJ is launched through the debugger. This happens bpth with Debug and Release builds.


Posted Thu 11 Jan 24 @ 3:26 am
