Topic: SC2900 no audio
I've just swapped to a new W10 laptop (from W7) and changing to VDJ2018. I'm struggling to get audio via the SC2900s.

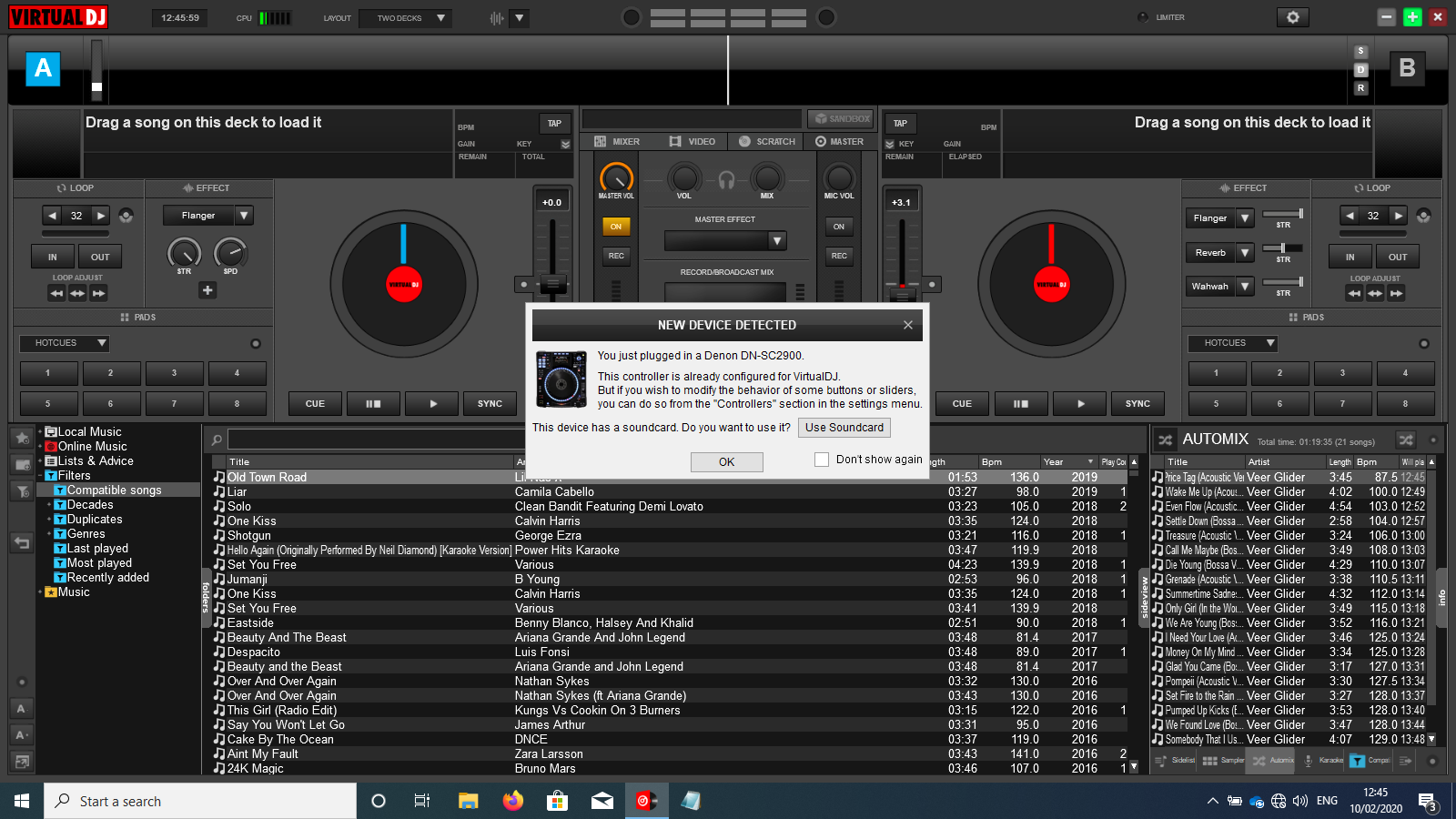

So, I've clicked "Use Soundcard" at the Startup screen.

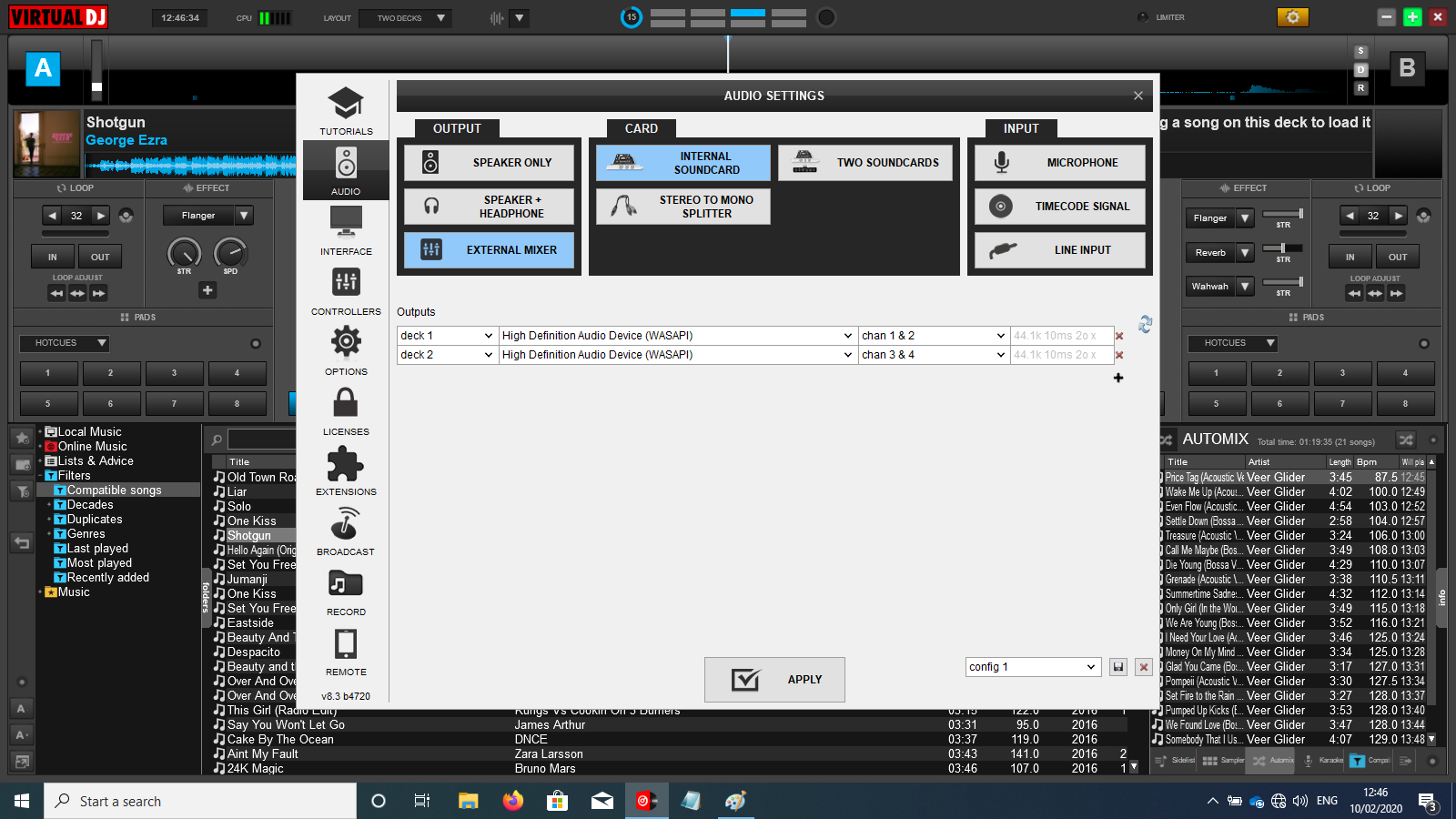

Audio settings are as below


Deck 1 plays through the laptop speaker. Deck 2, no audio from anywhere. The track does 'play' though, unlike V7.4 when the settings are in-correct.

I'm guessing I'm missing something real simple/silly.

Any help appreciated.

Note, MIDI control functions operting as expected. i.e. Play, Cue, Scroll, Select, Pitch, etc etc


Posted Tue 11 Feb 20 @ 2:42 pm
djdadPRO InfinityDevelopment ManagerMember since 2005
It appears that you are using a old/outdated Build of VirtualDJ. Can you please update to the latest available and see if that is still the case ?

If still an issue, can you please follow the steps below and provide the asked info ?

- Open VirtualDJ, goto Settings, OPTIONS tab and set createMidilog to Yes
- Close VirtualDJ
- Delete the file Log report.txt from Documents/VirtualDJ folder
- Make sure your SC2900 is connected and open VirtualDJ
- Close VirtualDJ
- Post here the content of the Log report.txt file you find in Documents/VirtualDJ folder


Posted Tue 11 Feb 20 @ 4:19 pm
VDJFilly wrote :

I'm guessing I'm missing something real simple/silly.

Did you install the ASIO driver? Assuming of course that the driver (and your Windows) is 64 bit.

Even if not, you shouldn't have "internal soundcard" selected, because the SC2900 is not internal... Is the SC2900 not listed on the drop down audio interface selection?


Posted Tue 11 Feb 20 @ 5:24 pm
djdad wrote :
It appears that you are using a old/outdated Build of VirtualDJ. Can you please update to the latest available and see if that is still the case ?

If still an issue, can you please follow the steps below and provide the asked info ?

- Open VirtualDJ, goto Settings, OPTIONS tab and set createMidilog to Yes
- Close VirtualDJ
- Delete the file Log report.txt from Documents/VirtualDJ folder
- Make sure your SC2900 is connected and open VirtualDJ
- Close VirtualDJ
- Post here the content of the Log report.txt file you find in Documents/VirtualDJ folder


Will do this as soon as I can.

groovindj wrote :
VDJFilly wrote :

I'm guessing I'm missing something real simple/silly.

Did you install the ASIO driver? Assuming of course that the driver (and your Windows) is 64 bit.

Even if not, you shouldn't have "internal soundcard" selected, because the SC2900 is not internal... Is the SC2900 not listed on the drop down audio interface selection?


According to VDJ online setup manual (for sc2900) "Denon ASIO not to be used, due to instability issues". Use windows WASAPI instead. However, I thought it odd that USB soundcard is not select-able.
Should I download the Denon ASIO driver, a genric ASIO driver (if that's even possible) or something else?

Thanks both for your help




Posted Tue 11 Feb 20 @ 5:50 pm
Ah, well in that case don't use it! The SC2900 should still be visible to your OS as an audio interface though...


Posted Tue 11 Feb 20 @ 6:02 pm
Log file

--- 2020/02/11 - 17:51 (5504)
[17:51] Audio device found: name="High Definition Audio Device" vid="0x111D" pid="0x76E7" hardwareID:"{0.0.0.00000000}.{183cefee-006d-4966-bd4a-6a4642cc01d8}"
[17:51] Audio device found: input name="High Definition Audio Device" vid="0x111D" pid="0x76E7" hardwareID:"{0.0.1.00000000}.{0a393c9e-115c-451c-a24e-6610d91685ac}"
[17:51] Midi out device detected, name:Microsoft GS Wavetable Synth mid:1 pid:27
[17:51] MIDI Device Identifying: \\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global (in:0 out:1) (name: SC2900)
[17:51] MIDI Device Identified by PID/VID: \\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global : Denon DN-SC2900
[17:51] Assigned Keyboard, type:0, index:1
[17:51] Assigned Denon DN-SC2900, type:2, index:1
[17:51] MIDI Device Identifying: \\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global (in:1 out:2) (name: SC2900)
[17:51] MIDI Device Identified by PID/VID: \\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global : Denon DN-SC2900
[17:51] Assigned Keyboard, type:0, index:1
[17:51] Assigned Denon DN-SC2900, type:2, index:1
[17:51] Assigned Denon DN-SC2900, type:2, index:2
[17:51] MIDI Device Identifying: Microsoft GS Wavetable Synth (in:-1 out:0) (name: Microsoft GS Wavetable Synth)
[17:51] MIDI Device Not Identified: Microsoft GS Wavetable Synth
[17:51] HID Device found: VID:0x154E PID:0x5018 path:\\?\hid#vid_154e&pid_5018&mi_05#8&18e0d31&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
[17:51] HID Device found: VID:0x154E PID:0x5018 path:\\?\hid#vid_154e&pid_5018&mi_05#8&b67d272&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
[17:51] Assigned Keyboard, type:0, index:1
[17:51] Assigned Denon DN-SC2900, type:2, index:1
[17:51] Assigned Denon DN-SC2900, type:2, index:2
[17:52] Midi In Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)
[17:52] Midi Out Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)
[17:52] Midi In Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)
[17:52] Midi Out Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)


Posted Tue 11 Feb 20 @ 6:08 pm
groovindj wrote :
Ah, well in that case don't use it! The SC2900 should still be visible to your OS as an audio interface though...


That's what i was expecting. Oh, well hope Djdad can shed some light..

Thanks though


Posted Tue 11 Feb 20 @ 6:17 pm
djdadPRO InfinityDevelopment ManagerMember since 2005
That's pretty weird.. without the ASIO driver installed, there doesn't seem to offer any WASAPI driver, so there is no ..
Audio device found: .... Denon device entry.
Therefor you shouldn't get any Denon entry in Windows Device Manager under "Audio inputs and outputs" either, right ?

This means that you have to install the Denon ASIO driver from Denon legacy downloads (https://www.denondj.com/downloads#legacy - scroll down to SC2900, ASIO driver 2.22)

After you install, there should be (hopefully) a button for Denon SC2900.

Please repeat the procedure above after installing the ASIO driver and provide the content of the Log Report.txt. Really curious to see if the WASAPI will be there now.


Posted Wed 12 Feb 20 @ 1:53 pm
djdad wrote :
That's pretty weird.. without the ASIO driver installed, there doesn't seem to offer any WASAPI driver, so there is no ..
Audio device found: .... Denon device entry.
Therefor you shouldn't get any Denon entry in Windows Device Manager under "Audio inputs and outputs" either, right ?

This means that you have to install the Denon ASIO driver from Denon legacy downloads (https://www.denondj.com/downloads#legacy - scroll down to SC2900, ASIO driver 2.22)

After you install, there should be (hopefully) a button for Denon SC2900.

Please repeat the procedure above after installing the ASIO driver and provide the content of the Log Report.txt. Really curious to see if the WASAPI will be there now.


Ok, will do, may not be for 36-48Hrs, pretty stacked here. Thank you for the support though, really appreciated !!


Posted Wed 12 Feb 20 @ 8:24 pm
Hi Djdad,

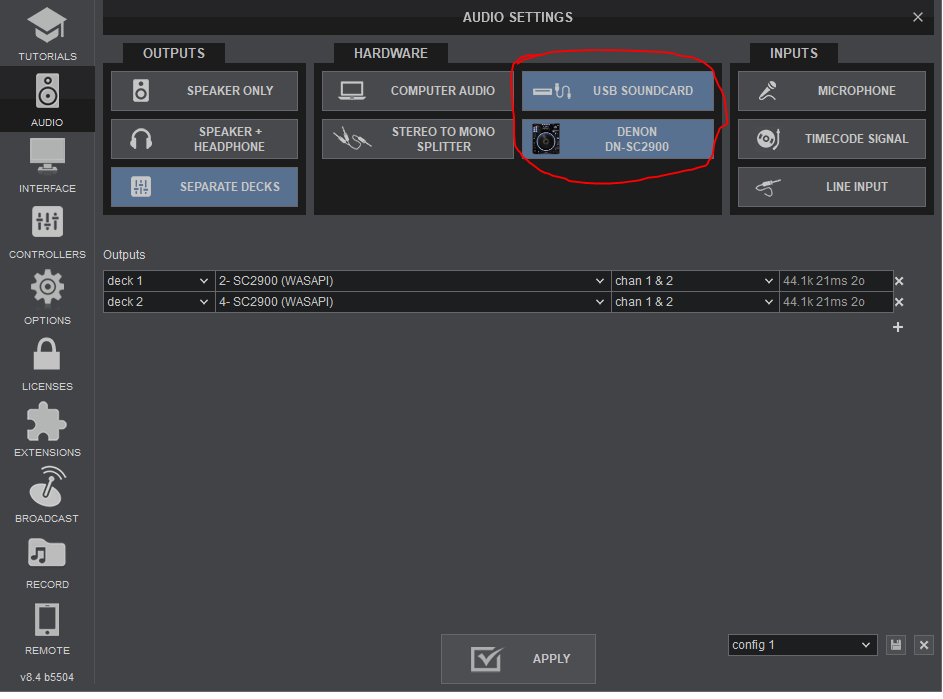

Good news, I now have audio, via WASAPI, so all sorted; thank you very much for you help!

Ok latest log file below just for ref.

--- 2020/02/13 - 18:50 (5504)
[18:50] Audio device found: name="High Definition Audio Device" vid="0x111D" pid="0x76E7" hardwareID:"{0.0.0.00000000}.{183cefee-006d-4966-bd4a-6a4642cc01d8}"
[18:50] Audio device found: name="3- SC2900" vid="0x154E" pid="0x5018" hardwareID:"{0.0.0.00000000}.{50071fb6-bd7d-492d-bb87-ddfda0d01a96}"
[18:50] Audio device found: name="4- SC2900" vid="0x154E" pid="0x5018" hardwareID:"{0.0.0.00000000}.{b7b9378f-452c-4f13-a890-abaf02f21477}"
[18:50] Audio device found: input name="High Definition Audio Device" vid="0x111D" pid="0x76E7" hardwareID:"{0.0.1.00000000}.{0a393c9e-115c-451c-a24e-6610d91685ac}"
[18:50] Audio device found: input name="4- SC2900" vid="0x154E" pid="0x5018" hardwareID:"{0.0.1.00000000}.{9623b1cb-a3fd-499b-8f05-f3975a453b90}"
[18:50] Audio device found: input name="3- SC2900" vid="0x154E" pid="0x5018" hardwareID:"{0.0.1.00000000}.{cffd7a73-dc35-4294-be19-b2333ef2a351}"
[18:50] Midi out device detected, name:Microsoft GS Wavetable Synth mid:1 pid:27
[18:50] MIDI Device Identifying: \\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global (in:0 out:1) (name: SC2900)
[18:50] MIDI Device Identified by PID/VID: \\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global : Denon DN-SC2900
[18:50] Assigned Keyboard, type:0, index:1
[18:50] Assigned Denon DN-SC2900, type:2, index:1
[18:50] MIDI Device Identifying: \\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global (in:1 out:2) (name: SC2900)
[18:50] MIDI Device Identified by PID/VID: \\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global : Denon DN-SC2900
[18:50] Assigned Keyboard, type:0, index:1
[18:50] Assigned Denon DN-SC2900, type:2, index:1
[18:50] Assigned Denon DN-SC2900, type:2, index:2
[18:50] MIDI Device Identifying: Microsoft GS Wavetable Synth (in:-1 out:0) (name: Microsoft GS Wavetable Synth)
[18:50] Midi Out Closed (Microsoft GS Wavetable Synth)
[18:50] MIDI Device Not Identified: Microsoft GS Wavetable Synth
[18:50] HID Device found: VID:0x154E PID:0x5018 path:\\?\hid#vid_154e&pid_5018&mi_05#8&18e0d31&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
[18:50] HID Device found: VID:0x154E PID:0x5018 path:\\?\hid#vid_154e&pid_5018&mi_05#8&b67d272&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030}
[18:50] Assigned Keyboard, type:0, index:1
[18:50] Assigned Denon DN-SC2900, type:2, index:1
[18:50] Assigned Denon DN-SC2900, type:2, index:2
[18:51] Midi In Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)
[18:51] Midi Out Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&ce6af4a&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)
[18:51] Midi In Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)
[18:51] Midi Out Closed (\\?\usb#vid_154e&pid_5018&mi_03#7&978f732&0&0003#{6994ad04-93ef-11d0-a3cc-00a0c9223196}\global)


Posted Fri 14 Feb 20 @ 4:10 pm
djdadPRO InfinityDevelopment ManagerMember since 2005
So, it was the ASIO driver that had to be installed for WASAPI to be offered ? or something else u did ?


Posted Sat 15 Feb 20 @ 1:43 pm
Hi DJDAD, sorry for long absence, crazy year!!

So yes, it appears Denon ASIO has to be installed for audio to work!?!?!
However, I have a sound issue:
If both controllers are connected, 1 controller suffers from extremely small/minor audio dropouts (almost un-noticelable, but they are there.), however, the very same audio file plays perfectly fine on the other controller.

Now, if I disconnect the other controller, the controller experiencing dropouts now plays the file perfectly fine also.

Note, while trying anything and everything I can think of to solve this (dis-abling/re-enabling drivers etc) I managed to get the issue on the other controller, which I think eliminates a hardware problem, but maybe wrong.



Any thoughts/input appreocated. I've updated everything I can, un-installed re-installed the Denon ASIO driver (definately no sound without it)

Thanks


Posted Tue 29 Jun 21 @ 2:30 pm
djdadPRO InfinityDevelopment ManagerMember since 2005
With both devices connected to usb, open Windows Sound and make sure none of the Denon sound cards are used as default playback devices (so choose your computers built in sound card for playback device), then try again with VDJ


Posted Tue 29 Jun 21 @ 2:48 pm
HI DJDAD, thanks so much for a quick response. Great minds, after un-installing relevant USB items in Device manger, the Denon ASIO driver, then carefully re-connecting/installing as per the VDJ hardware instructions for SC2900, still the same :-( However, Windows sounds does show two SC2900s (Pretty cetrtian only one showed before). Windows default sounds set to internal soundcard. Still have the issue.

So, as a last ditch attempt, I tried connecting one SC2900 to a different, as yet un-tried, USB port. The issue moved to new USB port, but is much worse. The audio now very momentarily dips pretty much every second.... and occaisionally skips a beat or crackles.



Posted Tue 29 Jun 21 @ 8:49 pm
